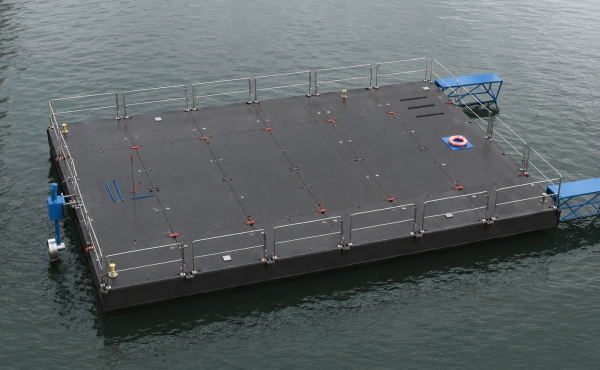

Custom Modular Floating Work Platform Product Img 1

Custom Modular Floating Work Platform with Knuckle Boom Crane

This custom modular floating work platform was designed according to the customer’s project requirements.

The platform is assembled from six single pontoon modules to form a larger working deck. A knuckle boom crane is installed on the deck for material handling and auxiliary lifting operations. Removable guardrails are arranged around the platform to improve personnel safety, while mooring fittings and tie-down rings are designed for boat fixing, temporary securing and future project use.

The final assembled platform size is 10m × 15m × 0.9m, providing a practical floating work base for water construction, maintenance, inspection, loading and material transfer.

Product Highlights

Modular Platform, Flexible Assembly, Practical On-water Operation

This modular floating work platform combines stability, transportability and flexible configuration in one solution. It can be transported as separate modules, assembled on site and adapted to different equipment and construction requirements across inland and nearshore water projects.

Key Advantages

  • Assembled from 6 single pontoon modules
  • Total platform size: 10m × 15m × 0.9m
  • Single module size: 2.5m × 10m × 0.9m
  • Modular design for easier transportation and site assembly
  • Equipped with a 5T-class knuckle boom crane
  • Crane working radius: 7m
  • Removable guardrails fixed by bolts
  • Mooring fittings for boat fixing
  • 8 tie-down rings designed on each module
  • Suitable for water construction, material transfer, maintenance and temporary work support

Technical Specifications

  • Platform Type : Modular floating work platform

  • Total Quantity : 6 single modules

  • Single Module Size : 2.5m × 10m × 0.9m

  • Total Assembled Size : 10m × 15m × 0.9m

  • Deck Equipment : Knuckle boom crane

  • Crane Capacity Class : 5T class

  • Crane Working Radius : 7m

  • Guardrails : Removable guardrails

  • Guardrail Fixing Method : Bolt-fixed connection

  • Mooring Fittings : Designed for boat fixing

  • Tie-down Rings : 8 rings per module

  • Platform Function : Floating deck, auxiliary lifting, material transfer, temporary work support

  • Suitable Water Area : River, lake, reservoir, port, calm water, nearshore worksite

  • Customization : Platform size, module quantity, crane model, deck layout, guardrails and fittings can be customized

Functions and Features

1. Modular Pontoon Assembly

The platform is assembled from six single pontoon modules.Each module can be transported separately and connected on site. This reduces transportation difficulty and allows the platform to be arranged according to the required working deck size.


2. 10m × 15m Working Deck

After assembly, the platform provides a 10m × 15m floating working deck.
This deck size is suitable for material handling, worker operation, equipment placement and temporary construction support.


3. 5T-class Knuckle Boom Crane

A knuckle boom crane is installed on the upper deck according to the customer’s requirement.
The crane is used for auxiliary lifting, loading, unloading, material transfer and on-water handling tasks. Its compact folding structure also helps save deck space when not in operation.


4. 7m Working Radius

The crane has a 7m working radius, making it suitable for handling materials between the platform, boat and nearby working area.
This improves the platform’s flexibility for water construction logistics.

5. Reinforced Crane Base

The crane installation area should be designed with a reinforced base structure.

This helps distribute crane loads to the platform structure and improves the safety of lifting operations.

6.Removable Safety Guardrails

Guardrails are designed around the platform to improve personnel safety.The guardrails are fixed by bolts, allowing them to be removed when necessary for transportation, maintenance, crane operation or special working layouts.


7. Mooring Fittings for Boat Fixing

Mooring fittings are designed on the platform for fixing boats and supporting on-water operation.This is useful when the platform needs to connect with small workboats, transport boats or auxiliary vessels.


8. Tie-down Rings for Future Securing

Each module is designed with 8 tie-down rings.These rings can be used for securing materials, tools, temporary equipment, ropes or other fixtures during later project use.

9. Custom Deck Layout

The platform layout can be adjusted according to the customer’s application.Options may include crane installation, guardrail arrangement, access ladder, mooring system, material storage area, pipeline support or other equipment mounting interfaces.

Applications of Amphibious Jack-up Work Platform

Water Construction Support


The platform can be used as a temporary floating work base for river, lake, reservoir and nearshore construction.

Material Loading and Transfer


With the knuckle boom crane, the platform can support loading, unloading and transferring materials between shore, boat and jobsite.

Maintenance and Inspection


The stable floating deck can support inspection, maintenance and repair work for water facilities, pipelines, banks, bridges or floating structures.

Temporary Work Access


The modular platform can provide temporary access and work space in areas where building a temporary road is not practical.

Small Equipment Support


The platform can support tools, power units, light machinery, pumps, hoses, pipes and auxiliary systems according to the project requirement.

Boat-side Operation


With mooring fittings, the platform can be used together with boats for material transfer, personnel access and floating jobsite organization.

Special Design and Engineering Details

Modular Pontoon Assembly

The platform is assembled from six single pontoon modules.Each module can be transported separately and connected on site. This reduces transportation difficulty and allows the platform to be arranged according to the required working deck size.

10m × 15m Working Deck

The platform uses an SK200 excavator as the power source.This configuration provides hydraulic power for platform movement, lifting and related working systems. It also makes the platform more practical for customers who need a proven and serviceable power system.

5T-class Knuckle Boom Crane

A knuckle boom crane is installed on the upper deck according to the customer’s requirement.The crane is used for auxiliary lifting, loading, unloading, material transfer and on-water handling tasks. Its compact folding structure also helps save deck space when not in operation.

7m Working Radius

The crane has a 7m working radius, making it suitable for handling materials between the platform, boat and nearby working area.This improves the platform’s flexibility for water construction logistics.

Reinforced Crane Base

The crane installation area should be designed with a reinforced base structure.This helps distribute crane loads to the platform structure and improves the safety of lifting operations.

Removable Safety Guardrails

Guardrails are designed around the platform to improve personnel safety.The guardrails are fixed by bolts, allowing them to be removed when necessary for transportation, maintenance, crane operation or special working layouts.

Mooring Fittings for Boat Fixing

Mooring fittings are designed on the platform for fixing boats and supporting on-water operation.
This is useful when the platform needs to connect with small workboats, transport boats or auxiliary vessels.

Tie-down Rings for Future Securing

Each module is designed with 8 tie-down rings.These rings can be used for securing materials, tools, temporary equipment, ropes or other fixtures during later project use.

Custom Deck Layout

The platform layout can be adjusted according to the customer’s application.Options may include crane installation, guardrail arrangement, access ladder, mooring system, material storage area, pipeline support or other equipment mounting interfaces.

FAQ

A modular floating work platform is a floating deck assembled from separate pontoon modules. It can be transported in sections and connected on site to form a larger work platform.

This platform is assembled from six modules. Each module is 2.5m × 10m × 0.9m, and the total assembled size is 10m × 15m × 0.9m.

Yes. A crane can be installed if the platform structure, deck reinforcement, stability and load distribution are properly designed. This case uses a 5T-class knuckle boom crane with a 7m working radius.

Yes. The guardrails are fixed by bolts, so they can be removed for transportation, maintenance or special working requirements.

Tie-down rings can be used to secure ropes, materials, tools, temporary equipment or other fixtures during platform operation.

Yes. Mooring fittings can be designed on the platform to help fix boats during material transfer or water construction operations.

Yes. The number of modules, single module size and total assembled size can be customized according to transportation limits, water conditions, deck load and working requirements.

Please provide required platform size, water area, deck load, crane or equipment requirement, transportation limits, working method and any special fittings such as guardrails, mooring points or tie-down rings.
